Understanding the Phase-Locked Loop (PLL)
In the world of electronics and communication systems, phase-locked loops play a key role. From wireless communication to clock signal production and radio tuning, the phase-locked loop hides in the background all around us. It is perhaps one of the most important control systems employed in modern electronics. It is one of the most important control systems in modern electronics. This article will break down the concept, components, types, applications, and some exciting projects and research related to phase-locked loops. Let’s dive in.
What is a Phase-Locked Loop?
A phase-locked loop (PLL) is a control system that compares the phase of two signals. It tries to match the phase and frequency of a generated signal to a reference signal. Once locked, the system keeps the signals aligned. PLLs are used to stabilize frequencies, recover signals, and generate clean clock pulses.
In simple words, a PLL helps in synchronizing one signal with another.
Basic Components of a PLL

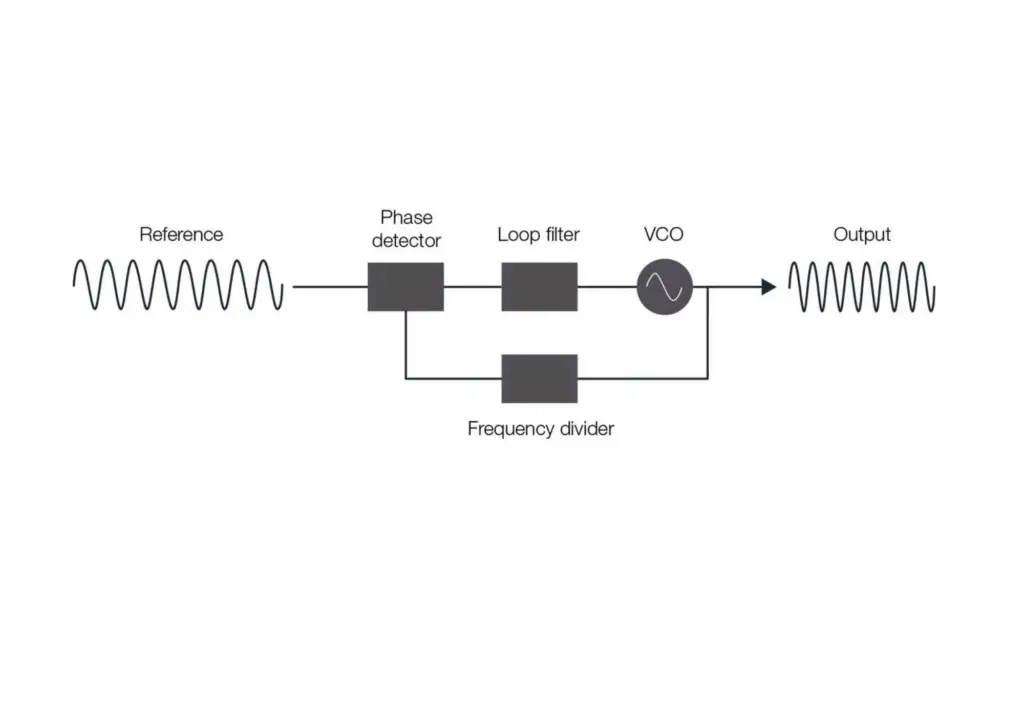

A typical phase-locked loop has three main parts:
Phase Detector (PD)
- Compares the phase of input and output signals.
- Outputs a signal based on the phase difference.
Low Pass Filter (LPF)
- Smooths the output of the phase detector.
- Removes unwanted high-frequency noise.
Voltage-Controlled Oscillator (VCO)
- Generates a signal whose frequency changes based on input voltage.
- This signal is fed back and compared again in the loop.
A Phase-Locked Loop (PLL) works by continuously comparing the input signal with the output of the Voltage-Controlled Oscillator (VCO) using a phase detector. If there is a difference in phase or frequency between the two signals, the phase detector produces an error signal. This signal is then passed through a low-pass filter, which removes high-frequency noise and smooths the output. The filtered signal is used to control the VCO, adjusting its frequency to reduce the phase difference. This process continues in a loop until the VCO output matches the phase and frequency of the input signal. Once synchronized, the system maintains this alignment, a condition known as the lock-in state.
Types of Phase-Locked Loops
There are several types of Phase-Locked Loops (PLLs), each suited for different designs and applications. Analog PLLs (APLLs) are built using analog components and are commonly found in older electronic systems. Digital PLLs (DPLLs), on the other hand, operate with digital signals and are widely used in modern microprocessors and communication devices. A more advanced version is the All-Digital PLL (ADPLL), which is fully digital, offering high speed and flexibility for integrated systems. Another popular type is the Charge-Pump PLL (CP-PLL), which uses a charge pump for better control and precision. CP-PLLs are often used in RF systems and frequency synthesizers where stable and accurate signal generation is critical.
PLL Projects for Engineering Students
PLL-Based FM Demodulator
The PLL-Based FM Demodulator project is based on improving a Phase-Locked Loop to effectively demodulate frequency-modulated (FM) signals. A PLL is a feedback system that locks the phase of a Voltage-Controlled Oscillator (VCO) to the phase of an incoming signal. In this project, the FM signal is fed into the PLL, where the phase detector compares it with the VCO output. Any phase or frequency difference generates an error voltage, which is filtered through a low-pass filter. This filtered output voltage represents the original modulating signal (such as audio or data) that was used to generate the FM signal.
The system consists of a Phase Detector, a Low-Pass Filter, and a VCO. As the FM signal’s frequency varies according to the information it carries, the VCO continuously adjusts to track these variations. The error signal generated due to this frequency deviation effectively reproduces the original signal. This type of demodulation is highly stable, precise, and noise-resistant compared to traditional methods. Applications of PLL-based FM demodulators include FM radio receivers, wireless communication systems, and signal tracking modules, making it a valuable and practical topic for study and real-world implementation.
Clock Multiplier Circuit
A Clock Multiplier Circuit is a digital circuit that generates a faster clock signal from a reference clock of a lower frequency. This is normally achieved using a Phase-Locked Loop (PLL). The idea is to “multiply” the input clock rate by a known ratio to generate a more rapid clock output. Inside the PLL, a Voltage-Controlled Oscillator (VCO) generates a high-frequency signal, which is subsequently divided down by a feedback divider. The PLL regulates the VCO to have the divided signal as in-phase and frequency equal to the reference clock input. By using the right divider ratio, the VCO frequency output can be programmed into a multiple of the input clock and therefore offer a clock multiplier.
Clock multipliers have extensive use in digital electronics, especially in microprocessors, FPGAs, and communications systems, where internal devices operate at greater speeds than the external clocks. For instance, a CPU is provided with a 100 MHz clock by the motherboard but uses a clock multiplier to run the internal logic at 2 GHz. Such circuits help provide high performance while keeping the external systems, which are slower, in synchronization. The stability and accuracy of PLL-based clock multipliers make them a fundamental block in modern high-speed digital design.
PLL-Based Motor Speed Controller
A PLL-Based Motor Speed Controller is a control system using a Phase-Locked Loop (PLL) to precisely track and maintain the rotation speed of a motor. The actual speed of the motor is usually detected by a feedback device such as an encoder or tachometer, which generates pulses proportional to the rotation of the motor. These pulses act as the feedback signal and are compared with a reference frequency (target speed) in the phase detector of the PLL. An error signal is filtered and fed to the input voltage or control signal of the motor so that the system will lock the motor speed concerning the desired reference frequency.
It is extremely good at maintaining constant speed in response to varying load conditions and finds application in situations where accuracy and stability are crucial, such as in robotics, CNC machines, and industrial automation systems. The PLL dynamically compensates the control signal so that any speed deviation is continuously compensated by it, and the reference and actual speeds are locked together very tightly. Compared to traditional open-loop control, a PLL-based speed controller offers better accuracy, faster disturbance response speed, and automatic drift correction, and is therefore a stable and reliable choice for closed-loop motor control systems.
Ongoing Research on PLL
Research on phase-locked loops (PLLs) is active to present, with several exciting areas of development. One key focus is on designing low-power PLLs for mobile and IoT devices, where energy efficiency is crucial. High-speed All-Digital PLLs (ADPLLs) for next-generation technologies like 5G and next-gen processors are another. Researchers are also creating noise reduction techniques to improve the accuracy of signals and improve phase noise models of integrated PLLs used in precision timing systems. The trend is towards more use of software-defined PLLs, where the control logic is established by software instead of hardware. It is more flexible and can be reconfigured easily for various applications.
The phase-locked loop may seem simple, but it powers some of the most advanced technologies today. From your smartphone to satellites, from robots to routers — PLLs keep things in sync. For students and engineers, learning PLL is a smart step. It connects analog, digital, and RF domains. It also opens doors to exciting careers in engineering, control systems, and electronics design. So go ahead, pick a project or explore a new PLL IC. Understanding the phase-locked loop today will help you build better systems tomorrow
